Programatically change the column with…

Dim ts As DataGridTableStyle = New DataGridTableStyle

ts.MappingName = "Vouchers"

DataGrid1.TableStyles.Clear()

DataGrid1.TableStyles.Add(ts)

DataGrid1.TableStyles("Vouchers").GridColumnStyles("VoucherNumber").Width = 170

DataGrid1.TableStyles("Vouchers").GridColumnStyles("Comment").Width = 400

----------------------------------------------------------------------------------------------------------------------------------------

KDN Pretty DataGrid Combo, Datetime, Checkbox Multiline Text, NumberPicker…

VB.Net DataGrid DataBinding:

All You’ll Ever Need

DataGrid Setup With A ComboBox Column.

***This code does it all*********************************************

Sub SetupDataGrid()

DataGrid1.CaptionText = "KnowledgeBase"

Dim ts As New DataGridTableStyle()

ts.MappingName = "Reference"

ts.PreferredRowHeight = 50

ts.BackColor = System.Drawing.Color.AliceBlue

ts.AlternatingBackColor = System.Drawing.Color.LightSlateGray

DataGrid1.TableStyles.Add(ts)

Dim ProjectName As New DataGridTextBoxColumn()

ProjectName.MappingName = "Project_Name"

ProjectName.Width = 200

ProjectName.HeaderText = "Project Name"

DataGrid1.TableStyles(0).GridColumnStyles.Add(ProjectName)

Dim Key_Words As New DataGridTextBoxColumn()

Key_Words.MappingName = "Key_Words"

Key_Words.Width = 200

Key_Words.HeaderText = "Key Words"

DataGrid1.TableStyles(0).GridColumnStyles.Add(Key_Words)

Dim Comments As New DataGridTextBoxColumn()

Comments.MappingName = "Comments"

Comments.Width = 490

Comments.HeaderText = "Comments"

DataGrid1.TableStyles(0).GridColumnStyles.Add(Comments)

End Sub

*********************************************************

Private Sub DataGrid1_CurrentCellChanged(ByVal sender As Object, ByVal e As System.EventArgs) Handles DataGrid1.CurrentCellChanged

MsgBox(DataGrid1.Item(DataGrid1.CurrentCell.RowNumber, 1))

Or…

Msgbox(Datagrid1.Item( datagrid1.currentrowindex,1))

End Sub

‘******** Another Snipit *********

Dim c As New DataGridCell()

c = DataGrid1.CurrentCell()

c.ColumnNumber = 0

DataGrid1.Item(c) = txtName.Text

‘********************************

'This will programitcally move you to a particular cell in a datagrid...

DataGrid1.CurrentCell = New DataGridCell(4, 1)

'********************************************************

*********************************************************

Another Way to iterate through the datagrid

Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click

Dim cm As CurrencyManager = CType(Me.BindingContext(Me.DataGrid1.DataSource), CurrencyManager)

Dim RowCount As Integer = cm.Count

'assumes datasource is a datatable...

Dim ColCount As Integer = CType(DataGrid1.DataSource, DataTable).Columns.Count

Dim Row As Integer

For Row = 0 To RowCount - 1

Dim Col As Integer

For Col = 0 To ColCount - 1

'This method will perserve the datatype of the value in the DataGrid's Cell...

Dim cellValue As Object = DataGrid1(Row, Col)

MessageBox.Show((cellValue.ToString() + " "))

'Like this way better....

Dim str As String

str = DataGrid1(Row, Col)

MessageBox.Show(str)

Next Col

Next Row

End Sub

*********************************************************

Private Sub DataGrid1_CurrentCellChanged(ByVal sender As Object, ByVal e As System.EventArgs) Handles DataGrid1.CurrentCellChanged

'This will tell you what row and column you just clicked inside of...

MsgBox(DataGrid1.CurrentCell.ToString)

'This will tell you the value in the cell you just clicked inside of...

MsgBox(DataGrid1.Item(DataGrid1.CurrentCell))

End Sub

Private Sub DataGrid1_CurrentCellChanged(ByVal sender As Object, ByVal e As System.EventArgs) Handles DataGrid1.CurrentCellChanged

‘This will tell you the value of cell 0 in row i

Dim i As Integer = DataGrid1.CurrentRowIndex

txtName.Text = DataGrid1.Item(i, 0)

End Sub

Other Ways…

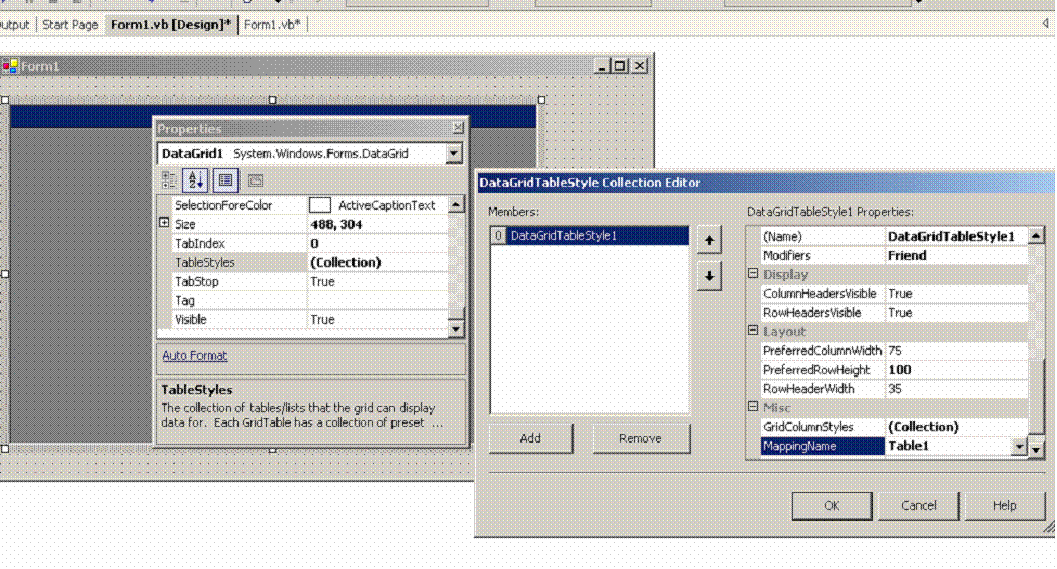

The image above shows the important properties of the vb.net datagrid. From the properties menu, select the TableStyles Collection and add a new collection, DataGridTableStyle1, as shown above. The MappingName, Table1, refers to the objDs.tables(“Table1”) that the DataGrid will be bound to with the command:

Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

'objDs & objDaTable1 can be placed in a Global Area

Dim objDs As New DataSet()

Dim objDaTable1 As New OleDb.OleDbDataAdapter()

Dim objConn = New System.Data.OleDb.OleDbConnection("provider=Microsoft.Jet.OLEDB.4.0;Data Source=c:\db1.mdb")

Dim objCommand As New OleDb.OleDbCommand()

objCommand = New OleDbCommand("Select * From Table1", objConn)

objDaTable1.SelectCommand = objCommand

objDaTable1.Fill(objDS, "Table1")

Dim objCommandBuilder As New OleDbCommandBuilder(objDaTable1)

DataGrid1.DataSource = objDs.Tables("Table1")

DataGrid1.SetDataBinding(objDs, "Table1")

End Sub

Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click

objDaTable1.Update(objDs.Tables("Table1"))

End Sub

Notice the DataGrid1.DataSource = objDs.Tables(“Table1”) and DataGrid1.SetDataBinding(objDs,”Table1”).

The “PreferredRowHeight” property is used to set the DataGrid’s Row Height.

Notice the format of the DataGrid1.SetDataBinding(objDs,”Table1”) command. objDs , “Table1”… NOT objDs.tables(“Table1”)

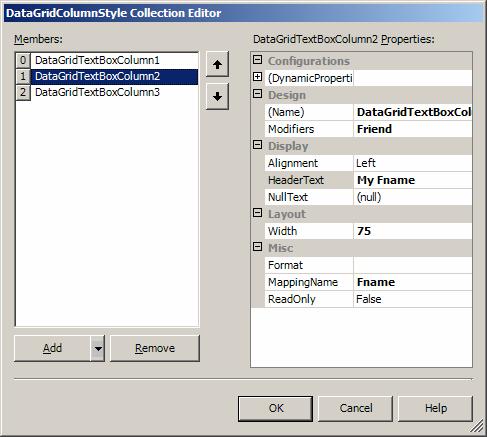

The above image depicts the DataGridColumnStyle Collection. Notice there is a member for each datafield we want displayed on the grid. Also notice that the MappingName corresponds to the Table’s Field Name.

When you click on a cell, this event will display the cell’s text….

Private Sub DataGrid1_CurrentCellChanged(ByVal sender As Object, ByVal e As System.EventArgs) Handles DataGrid1.CurrentCellChanged

MsgBox(DataGrid1.Item(DataGrid1.CurrentCell))

End Sub

‘********** How to add a ComboBox To A VB.Net DataGrid *****************************

If DataGrid1.CurrentCell.ColumnNumber = 2 Then 'Column 0 clicked

Dim cb As New System.Drawing.Rectangle() 'cell bounds

cb = DataGrid1.GetCellBounds(DataGrid1.CurrentRowIndex, 2) 'cell bounds

ComboBox1.Location = New Point(cb.X, cb.Y) 'Location for month control

DataGrid1.Controls.Add(ComboBox1) 'Add the month control

ComboBox1.Width = cb.Width

ComboBox1.BringToFront()

ComboBox1.Show() 'Show the control

End If

‘***********************************************************************************************
