Step 1

          Create a Data Access Layer Class that will handle the Get, Update, Delete and Insert.  Below is a Class, “MyDataAccessLayerClass”, that does just that.

Public Class MyDataAccessLayerClass

Dim Connstring As String = ConfigurationManager.ConnectionStrings("SMTBankConnectionString").ConnectionString

Public Function GetSomeData() As DataSet

Dim cs As String = ConfigurationManager.ConnectionStrings("SMTBankConnectionString").ConnectionString

Dim objConn As New SqlConnection(cs)

Dim objCommand As New SqlCommand

Dim objDa As New SqlDataAdapter

Dim objDs As New DataSet

Dim objCommandBuilder As New SqlCommandBuilder

        objCommand.CommandText = "Select id_reference,[Reference] From [References]"

        objCommand.Connection = objConn

        objDa.SelectCommand = objCommand

        objDa.Fill(objDs, "Table1")

Return objDs

End Function

Public Sub UpdateSomeData(ByVal Reference, ByVal Id_reference)

Dim cs As String = ConfigurationManager.ConnectionStrings("SMTBankConnectionString").ConnectionString

Dim objConn As New SqlConnection(cs)

Dim objcommand As New SqlCommand

Dim QStr As String

        QStr = "UPDATE [References] SET "

        QStr = QStr & "[Reference] = '" & Reference & "'"

        QStr = QStr & " WHERE id_reference = " & Id_reference

        objcommand = New SqlCommand(QStr, objConn)

        objConn.Open()

        objcommand.ExecuteNonQuery()

        objConn.Close()

End Sub

Public Sub DeleteSomeData(ByVal id_reference)

'!!!!!!!!!!!!!!!!!!!!!!

'Important!!!!!!!!!!!!!

'!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

'  The DataKeyName Property of the Gridview control must be set to id_reference!!!!

'!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

'!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Dim cs As String = ConfigurationManager.ConnectionStrings("SMTBankConnectionString").ConnectionString

Dim objConn As New SqlConnection(cs)

Dim objcommand As New SqlCommand

Dim QStr As String

        QStr = "Delete  From [References] where id_reference = " & id_reference

        objcommand = New SqlCommand(QStr, objConn)

        objConn.Open()

        objcommand.ExecuteNonQuery()

        objConn.Close()

End Sub

Public Sub InsertSomeData(ByVal Reference, ByVal id_bank)

Dim cs As String = ConfigurationManager.ConnectionStrings("SMTBankConnectionString").ConnectionString

Dim objConn As New SqlConnection(cs)

        objConn.Open()

Dim objCommand As New SqlCommand

Dim v1 As String = "'" & Reference & "'"

Dim v2 As String = id_bank

'WebForm Fields....

Dim strValues As String = v1 & "," & v2

'Database Fields...

Dim strFields As String = "[Reference],Id_bank"

        objCommand = New SqlCommand("INSERT INTO [References] (" & strFields & ") VALUES (" & strValues & ")", objConn)

        objCommand.ExecuteNonQuery()

        objCommand.Dispose()

        objCommand = Nothing

        objConn.Close()

End Sub

End Class

Step 2

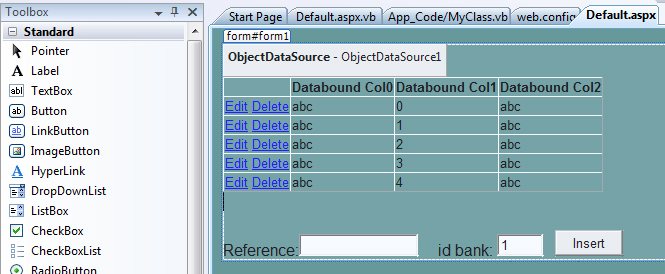

          On the webform, drop a DataGridView and ObjectDataSource Control…

The DataKeyName Property of the Gridview control should be set to the DataSet’s id key field.

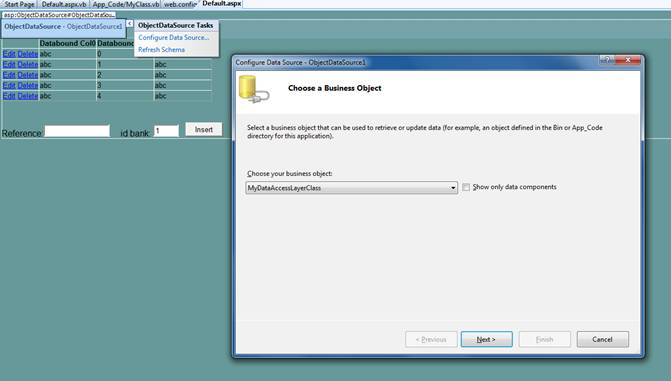

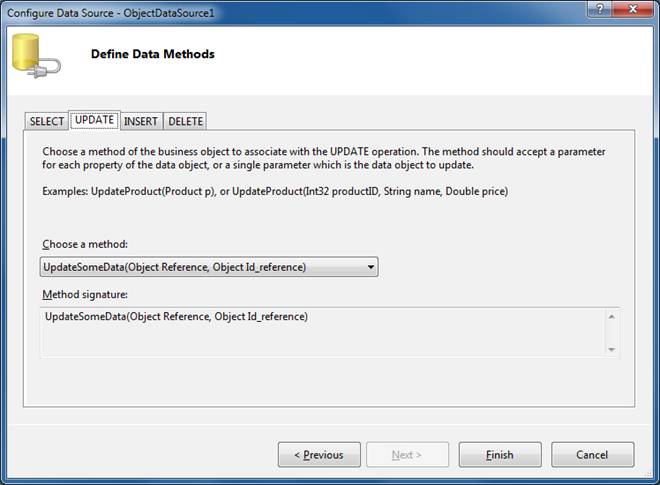

Step 3

          Configure the ObjectDataSource for Update, Insert, Select and Delete…

Step 4

          Add some code to do the insert….

This code actually has nothing to do with the DataGridView

Protected Sub cmdInsert_Click(ByVal sender As Object, ByVal e As System.EventArgs) Handles cmdInsert.Click

'Insert a record and refresh the DataGridView

Dim o As New MyDataAccessLayerClass

o.InsertSomeData(txtReference.Text, txtIDBank.Text)

'Refresh the DataGridView

Me.DataBind()

End Sub

Step 5

          Don’t forget to hide the id fields…

Protected Sub GridView1_RowCreated(ByVal sender As Object, ByVal e As System.Web.UI.WebControls.GridViewRowEventArgs) Handles GridView1.RowCreated

'Maketh id_reference column invisible...

'Why this works? Because the event is called after the data is bound to the grid... This ensures that the column has been databound and then it is hidden.

e.Row.Cells(1).Visible = False 'id_reference

End Sub
